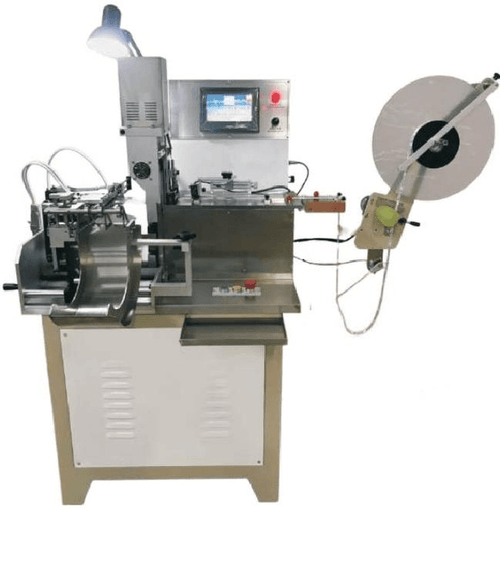

CY800 Ultrasonic Label Cut and Fold Machine
The Short Answer
The CY800 is an ultrasonic label cut and fold machine. It cuts labels to length and folds them with five interchangeable molds: center fold, long-short fold, cut only (no fold), triangle fold and end fold. It handles label widths from 5 to 75 mm and cut lengths from 40 to 270 mm, with cutting accuracy of ±0.5 mm and speed up to 200 times/min. The machine is 220 V single phase, 2.5 kW, 250 kg and 100 × 140 × 145 cm. It is the main model for most label customers; the CY828 is the high-end option.
Five Fold Types
- Center fold
- Long-short fold
- Cut only (no fold)
- Triangle fold
- End fold
The fold type is changed by changing the mold. The machine also has tool-free length adjustment, so the operator can set a new label length without changing tools.
Materials
The CY800 is for printed labels and labels without a pushing line. It also handles satin, polyester, nylon, synthetic blends with at least 30% synthetic fiber, non-woven, T/R fabric and size labels.
Ultrasonic cutting is not suitable for every material. Thick woven labels are outside the ultrasonic range; send the actual label for a cutting and folding test before ordering.
Why the CY800
- Five fold types in one machine
- Tool-free length adjustment
- Photoelectric label recognition
- Automatic stop when labels are missing or defective
- Optional color sensor
- Ultrasonic cutting and sealing for suitable materials
- Compact body: 100 × 140 × 145 cm
- Up to 200 times/min
- Main model for all label customers
- CY828 is the high-end option for buyers with special requirements
Key Specifications
Model: CY800
Machine type: ultrasonic label cut and fold machine
Cutting length: 40–270 mm
Label width: 5–75 mm
Cutting accuracy: ±0.5 mm
Speed: 0–200 times/min
Power: 2.5 kW
Voltage: 220 V single-phase
Weight: 250 kg
Dimensions: 100 × 140 × 145 cm
Control: computer control
Motor: variable-frequency motor
Recognition: photoelectric system; optional color sensor
Functions: five-fold molds, tool-free length adjustment, auto-stop for missing or defective labels
Warranty: 1 year
Support: online support
Installation: plug-and-play; no installation required
How It Works
1. Load the label roll.
2. Set the label length and choose the fold mold.
3. The photoelectric system recognizes the label.
4. The machine cuts and folds the label.
5. If a label is missing or defective, the machine stops automatically.
Quality and Edge
For suitable materials, the ultrasonic cutter cuts and seals the edge at the same time. The sealed edge helps prevent fraying. The final edge and fold quality are checked on the customer's actual label before the machine configuration is confirmed.
Who It Is For
- Printed label factories
- Garment accessory factories
- Care label and size label producers
- Label workshops with mixed fold types and short runs
- Buyers who want one machine for common fold styles
Machine Photos and Video
Click here to see the machine performance video
Machine photos and a running video are available. Contact us with the label width, cut length, and fold type, and we will send the relevant photos and video.
Frequently Asked Questions
Q: What fold types can the CY800 make?
A: Center fold, long-short fold, cut only (no fold), triangle fold, and end fold.
Q: How do I change the fold type?
A: Change the mold. The machine also has tool-free length adjustment for different label lengths.
Q: What is the difference between the CY800 and CY828?
A: The CY800 is the main model for all customers and covers five fold types. The CY828 is the high-end option for buyers with special quality or production requirements.
Q: What materials can it cut and fold?
A: Printed labels, satin, polyester, nylon, synthetic blends with at least 30% synthetic fiber, non-woven, T/R fabric and size labels. Thick woven labels are outside the ultrasonic range; test the actual label first.
Q: What is the cutting length and label width?
A: Cutting length 40–270 mm; label width 5–75 mm.
Q: What is the speed and accuracy?
A: Up to 200 times/min; cutting accuracy ±0.5 mm.
Q: Does it stop when a label is missing or defective?
A: Yes. The photoelectric system detects the label, and the machine stops automatically when a label is missing or defective.
Q: Is a color sensor included?
A: A color sensor is optional.
Q: Do you provide installation?
A: No installation is required. The machine is plug-and-play, with online support.
Q: What is the warranty?
A: 1 year.
Q: Can you test our labels?
A: Yes. Send the label material, width, cut length, fold type, and artwork. We will test the cut and fold and confirm the configuration.
Send your label material, width, cut length, fold type, artwork, and target output. We will confirm the CY800 configuration, test the cut and fold, and quote the machine.
