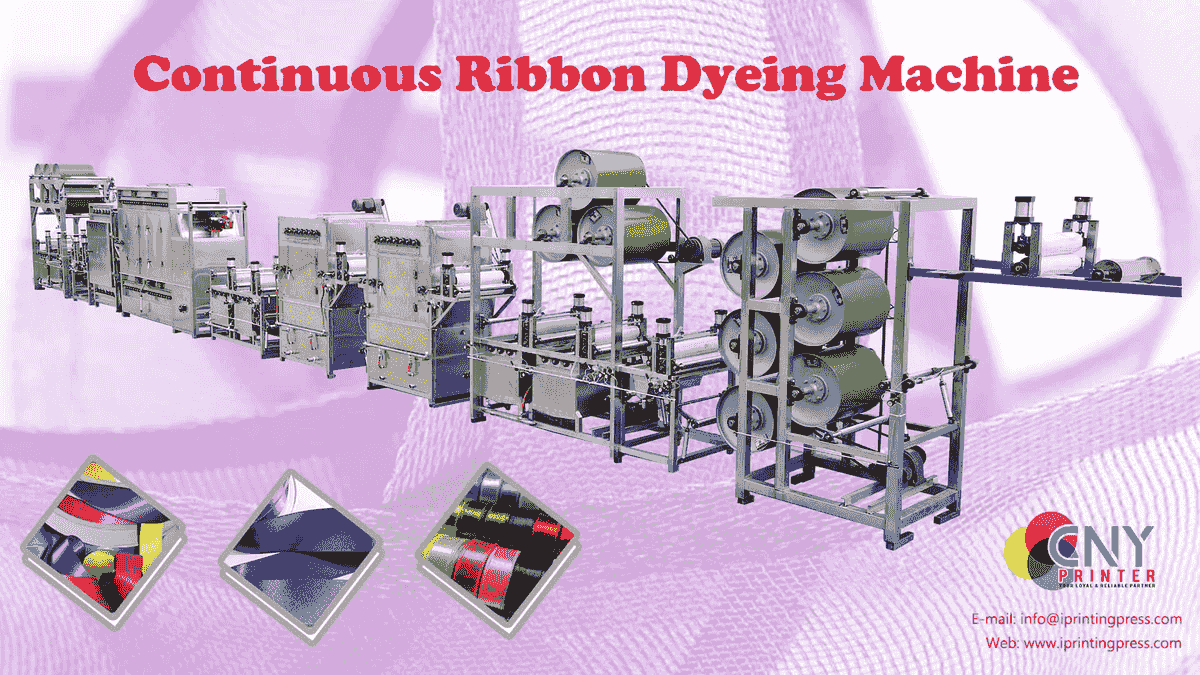

Continuous Dyeing Process for Ribbons

Continuous dyeing has become the mainstream way to color ribbons at high speed and with repeatable quality. It works great for polyester and nylon ribbons. The core is simple: get stable greige quality, run a dependable line, and lock a narrow, repeatable process window. In this guide, you will learn how to control left-center-right shade, face-back shade, and lot-to-lot shade. You will also see how to choose a continuous dyeing machine, including a polyester ribbon continuous dyeing machine and a nylon continuous dyeing machine.

What is ribbon continuous dyeing?

• Definition: It is a line that combines pad, pre-dry, fixation, wash, dry, and setting in one continuous flow.

• Typical flow for polyester ribbons with disperse dyes:

1) Pre-treatment and de-oiling

2) Padding the dye liquor

3) Infrared pre-drying

4) Thermosol hot-air fixation

5) Reduction clearing or soaping

6) Rinsing

7) Drying

8) Heat-setting and winding

Typical flow for nylon ribbons with acid dyes:

1. Pre-treatment
2. Padding a weak-acid dye bath
3. Low-temperature pre-dry
4. Steam fixation (pad-steam or wet heat)
5. Soaping and neutralization
6. Rinsing
7. Drying
8. Heat-setting and winding

Why is continuous dyeing for ribbons

1. High output and low unit cost
2. Better shade consistency across the width
3. Stable process control and easier scale-up
4. Lower water and energy use with the right settings

How to choose the right continuous dyeing machine

When you select a continuous dyeing machine, match it to your fiber and shade depth.

1) Polyester ribbon continuous dyeing machine

Must-haves:

• Stable padding unit with pneumatic loading. Two cylinders with independent control on both sides. Target line pressure from 0.2 MPa and above. Aim for even pick-up across the width.
• Infrared pre-drying with closed-loop temperature control. Zonal power output to match width and thickness.
• Thermosol oven with strong air circulation. Keep the left-center-right temperature within ±2°C. Top temperature up to 205–210°C for deep shades.
• Tension control and auto edge guiding. Low tension threading, full line VFD synchronization.
• Multi-stage counterflow washing. Filters for liquor reuse to save water.
• Clean, dry compressed air with a dryer and oil-water separator to keep cylinder pressure stable.
• Roller and material details:
• Roller hardness in the Shore A 70–85 range. Adjust to ribbon width and thickness.
• Concentricity matters. Calibrate rollers on a schedule.
• Leave room for online sampling and color measurement.

2) Nylon continuous dyeing machine

Must-haves:

• Acid-resistant padding system. Use acid-proof pumps and roller covers. Keep pH under tight control with inline dosing.
• Low-temperature pre-dry at 80–100°C. Avoid surface-dry with wet core.
• Steam fixation box (pad-steam). Stable saturated steam. Even moisture and fast condensate removal. Uniform airflow inside the box.
• Strong washing and neutralization. End with a mild neutral bath if needed.
• Gentle tension profile. Nylon stretches more. Use soft traction and precise speed sync.
• Control add-ons:
• Monitor temperature and absolute humidity inside the steamer.
• Collect acidic effluent and neutralize before discharge.

3) Features that help both lines

• Digital, traceable control of temperature, speed, tension, and pick-up
• Regular roller calibration to keep even pick-up left to right
• Good air quality for cylinders to avoid pressure drift over time

Start with the greige ribbon and pre-treatment

• Keep yarn batches consistent. Greige made from mixed yarn lots can hold different levels of spin-finish oil. That is a key reason for mottled shades.
• Do proper de-oiling and scouring. Once oil is removed, dye can contact the fiber directly. This lifts leveling and depth.
• Manage weave structure, warp and weft density, warping tension, and thickness. These changes capillary flow and pick-up. Align weaving and dyeing plans. Use first-in-first-out for greige inventory to cut lot variance.

Padding unit: pressure, concentricity, and hardness

• Pressure: As a rule of thumb, keep pad pressure at or above 0.2 MPa. Low pressure gives poor dye take-up. Too high pressure gives unstable, high pick-up and can cause dye migration.
• Concentricity: Worn rollers cause pick-up to vary across width. Calibrate and refurbish rollers on a schedule.
• Hardness: If too hard, the dye liquor cannot enter the ribbon structure well. If too soft, the pick-up becomes too high and drifts with time. Most ribbon lines run well with Shore A 70–85. Narrow, thick ribbons may be a bit harder. Wide, thin ribbons may be a bit softer. Validate with actual pick-up and shade data.

Infrared pre-dry: stop dye migration early

• Goal: Remove water before fixation. This reduces dye movement and keeps the shade even on both faces.
• For polyester ribbons:

1) Below 80°C, face-back shade difference is common and often fails customer specs.

2) At 100–150°C, most water is gone, and migration drops. Tune by thickness and pick-up.

• For sensitive colors like coffee or dark green, use an anti-migration agent together with the right pre-dry. Do not rely on temperature alone.
• For nylon ribbons: pre-dry at 80–100°C for a short time. Avoid strong surface drying.

Fixation: Even temperature rules the shade

Polyester thermosol fixation:

• Keep the left-center-right temperature within ±2°C. Once the gap is bigger, you will see shade shift across the width.
• Typical window: 180–205°C for 60–120 seconds. Choose based on dye class (S, SE, E) and the shade depth.

Nylon steam fixation:

• Common window: 98–102°C saturated steam for 8–15 minutes. For wet heat at a higher temperature, 120°C for 5–8 minutes if your line allows.
• Control pH in the pad bath. A range of 4.0–5.5 is common. pH drift changes both tone and depth.
• Maintenance:
• Service heaters, burners, fans, ducts, and filters. Keep the box insulated. Avoid hot spots and cold spots.

Moisture and drying uniformity

• Dry the greige fully after pre-treatment. Uneven moisture before padding causes uneven pick-up and leads to left-center-right shade difference.
• Check the surface temperature of dryers and cans. Fix any local hot or cold zones.
• Optional inline moisture sensors can help catch issues before the pad.

Machine and production management

• Keep the infeed tension consistent. Uneven tension before the pad means uneven pick-up. Close the loop on tension and standardize threading paths.
• Sync all VFDs across the line. Replace any lagging control units.
• Maintain the heating system. Your heat-up and control curves should repeat by recipe.
• Keep compressed air clean and dry. Service dryers and oil-water separators to hold stable cylinder pressure.
• Record process data: speed, tension, temperatures, pick-up, recipe number, dye batch, and greige lot. This makes troubleshooting fast.

Recipe design and auxiliaries

Dye selection for polyester:

• - Use disperse dyes with similar sublimation fastness and similar type (S, SE, E). Mixing very different types increases the risk of tone drift and migration.

Auxiliaries:

• Anti-migration agents are necessary for medium to deep shades and sensitive colors.
• Leveling agents and penetrants improve smooth uptake and reduce risk on fast lines.
• Reduction clearing agents for polyester remove unfixed dye and stabilize the tone.
• For nylon, plan for pH buffers, retarding or leveling salts if needed. Avoid overuse to protect the handle and fastening.

Dosing strategy:

• Always run lab dips and window scans. Lock the smallest effective dosage. This reduces chemical load and cuts variability.

Reference process windows for ribbons

These are starting points. Always validate with lab and pilot runs.

• Polyester ribbons with disperse dyes (thermosol):
• Pre-treatment: alkaline de-oiling and good rinsing
• Padding: liquor pick-up 60–80%
• IR pre-dry: 100–150°C, tuned to thickness and pick-up
• Fixation: 180–205°C for 60–120 seconds
• Reduction clearing or soaping: 85–95°C for 10–20 minutes
• Final drying and heat-setting: 160–185°C with matched speed and tension
• Nylon ribbons with acid dyes (pad-steam):
• Padding: pH 4.0–5.5 buffered with acetic or formic acid, pick-up 60–85%
• Pre-dry: 80–100°C
• Steam fixation: 98–102°C saturated steam for 8–15 minutes, or 120°C wet heat for 5–8 minutes if allowed
• Soaping and neutralization: adjust to tone and fastness, finish with softener if needed
• Drying and setting: 120–160°C, low tension to protect dimensions

Common problems and quick checks

Left-center-right shade difference:

• Check oven temperature uniformity. Keep within ±2°C.
• Check pad pick-up uniformity. Look at pressure, roller concentricity, and hardness.
• Check moisture uniformity before the pad.

Face-back shade difference:

• Pre-dry may be too low or too high. Fine-tune and add an anti-migration agent.
• Review the airflow and web path. Avoid one-sided heat or air blast.

Lot-to-lot shade difference:

• Mixed yarn lots with different oil levels. Tighten greige control.
• Dye batch change or recipe drift. Standardize and record.
• Poor repeatability of speed or temperature profiles. Tighten controls.

Local mottling or streaks:

• Tension instability or edge airflow issues
• Surface-dry with wet core
• Poor filtration or contamination

People Also Ask (PAA)

1. What is a continuous dyeing machine?

It is a production line that pads dye liquor onto a moving ribbon, then pre-dries, fixes, washes, and dries it in one pass. It boosts output and makes shade control easier.

2. How is a polyester ribbon continuous dyeing machine different?

It is built around thermosol fixation for disperse dyes. It has stronger and more precise hot-air ovens, robust IR pre-dry, and a reduction clearing section.

3. Can a nylon continuous dyeing machine run polyester too?

It can if the line includes both a steam box and a thermosol oven. But to protect quality and cut changeover time, many plants prefer separate lines or strict cleaning SOPs when switching.

4. How do I reduce face-back shade difference?

Raise IR pre-dry to the right range, often 100–150°C for polyester. Use an anti-migration agent. Balance airflow and rollers so both faces see similar conditions.

5. What pad pressure should I use?

Start at or above 0.2 MPa. Tune by ribbon type and target pick-up. Keep roller concentricity and match roller hardness to the product.

6. Does oven temperature uniformity matter?

Yes. A left-center-right gap larger than 2°C can shift color visibly and cause cross-width shade bands.

Quality control and data

• Key KPIs to track: pick-up, tension, speed, pre-dry temperature, fixation temperature and time, box airflow or humidity, pH, and clearing or soaping conditions.

Practical tools:

• Inline moisture and temperature sensors
• Shift-based cross-width sampling and ΔE tracking
• Compressed air dew point checks
• Scheduled roller alignment and hardness checks
• Recipe scale-up path: lab dip → pilot → bulk. Lock the curve before going full speed.

Environmental and cost notes

• Energy: zone control on IR and hot air, heat recovery, and optimal speed-temperature curves
• Water and chemicals: counterflow washing, filtration and reuse, precise dosing to cut load and rework
• Compliance: separate streams for acidic and reduction-clearing effluent; neutralize to meet discharge rule

Quick checklist before you scale production

• Same yarn batch and controlled spin-finish oil level
• Proper de-oiling in pre-treatment
• Pad pressure at or above 0.2 MPa; verify roller concentricity and hardness
• IR pre-dry tuned to stop migration
• Oven or steamer within ±2°C left-center-right
• Even moisture before the pad
• Stable tension and synchronized drives
• Matching dye class (S/SE/E) and right auxiliaries
• Full data records and sample checks per lot

Why partner with a specialist

A great line is more than hardware. You need recipes, SOPs, training, and the right service plan. A tailored polyester ribbon continuous dyeing machine or nylon continuous dyeing machine will help you hit the target color faster, reduce rework, and protect margins. A true partner will run lab work, set the window, train your team, and watch your KPIs with you.

Conclusion

Continuous dyeing for ribbons is a proven path to high output and stable color. Focus on three anchors: stable greige, robust equipment, and a tight process window. Control pre-dry, fixation, and pick-up. Keep temperatures uniform and tension steady. Choose a continuous dyeing machine that fits your fiber and your market mix. With the right setup, you can beat shade issues before they show up and grow with confidence.
