Continuous dyeing has become the main method in the weaving tape industry. It’s fast, energy-efficient, and provides excellent color consistency, making it ideal for materials like polyester and nylon. However, to achieve precise and stable continuous dyeing, three factors must be controlled: stable greige tape, reliable equipment, and a repeatable process window. This article combines practical production experience with Google's "Helpful Content" guidelines, offering easy-to-understand, actionable insights. These tips will help you achieve left-center-right consistency, face-back color consistency, and batch-to-batch consistency, while also covering essential equipment choices for continuous dyeing machines—whether for polyester or nylon weaving tapes. This guide is perfect for process engineers, quality control staff, and equipment managers.
1. Start by Stabilizing the Greige Tape: Reduce Risks from the Start

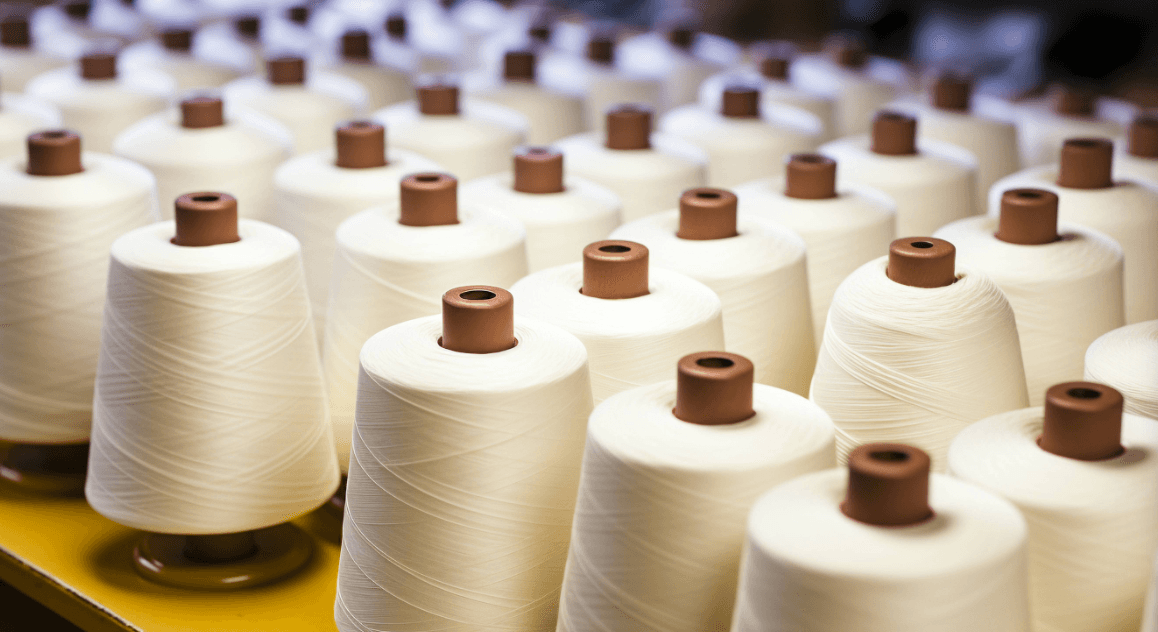

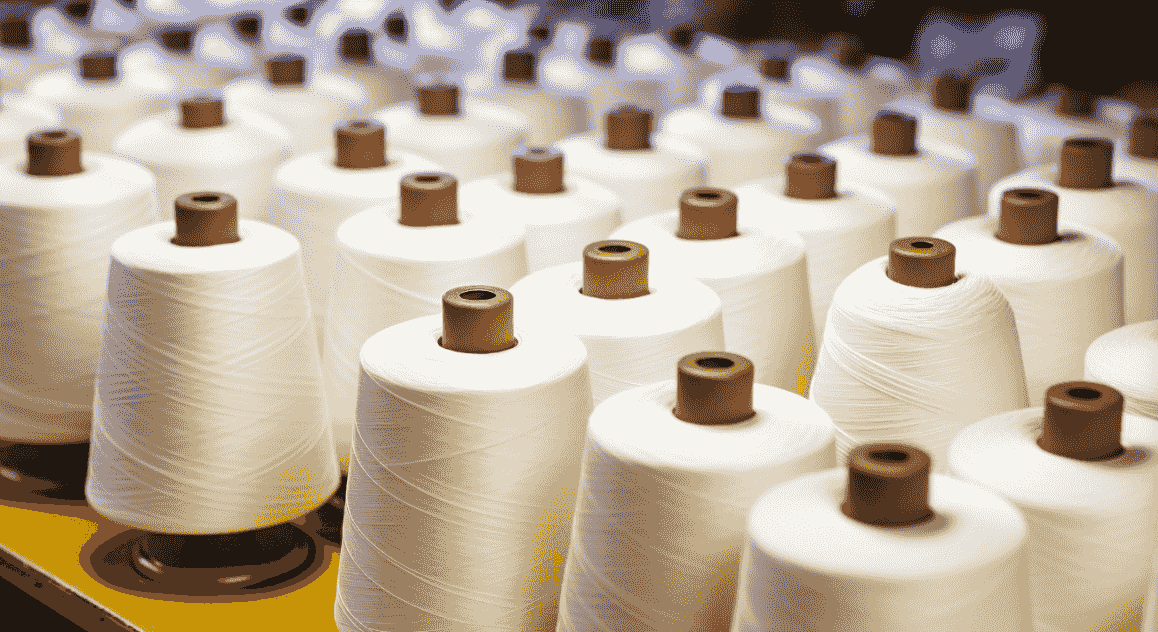

- Use yarn from the same batch and with consistent oil content: Different batches of yarn contain varying amounts of spinning oils, which can cause color differences during dyeing. Always use yarn from the same batch and conduct oil content tests when it arrives.
- Pre-treatment is essential: Ensure thorough refining and oil removal. If oils are not fully removed, the dye won’t bond well to the fibers, leading to inconsistent color. Clean oil ensures dye penetrates the fibers faster and more evenly.
- Ensure consistency in greige tape specifications: Variations in weave, warp, and weft density, warping tension, and thickness all affect the capillary action and liquor pick-up. Weaving and dyeing need to be planned in tandem, and greige tape inventory should follow a "first in, first out" approach.
2. Padding Stage (Dye Bath/Padder): Balancing Pressure, Concentricity, and Hardness
- Cylinder pressure should be consistent on both sides: Continuous lines often use pneumatic pressure. Moisture in the compressed air can cause pressure differences over time, resulting in uneven liquor pick-up and left-right color differences. Install a dryer and oil-water separator in the air system to prevent this.
- Recommended padder pressure ≥0.2 MPa: If the pressure is too low, the dye uptake will be insufficient; if it’s too high, the liquor pick-up will be too high and unstable, potentially causing dye migration and color streaks.
- Concentricity and deflection of the rollers: Worn rollers can become off-center, causing uneven pick-up and color differences. Regularly calibrate and maintain rollers to prevent deflection.
- Matching roller hardness to product needs: Too hard rollers prevent the dye from entering the fabric structure, while too soft rollers lead to excessive liquor pick-up and instability. A common hardness range is Shore A 70-85. Thicker and narrower tapes require slightly harder rollers, while thinner and wider tapes need softer ones. Adjust based on actual liquor pick-up and color consistency.
Quick self-checks:
- Are the pressure readings on both cylinders even?
- Sample and measure liquor pick-up, comparing left-center-right.
- Inspect roller wear and deflection; replace or re-coat when necessary.
3. Infrared Pre-drying (IR): The First Barrier Against Dye Migration
- Purpose: The goal of IR pre-drying is to remove excess moisture before the color is fixed, reducing dye migration and controlling face-back color differences and color streaks.
- Parameters for Polyester Weaving Tapes:
(1). Below 80°C, face-back color differences are a high risk, and achieving customer standards becomes difficult.
(2). Start at 100°C, with a common range of 100-150°C. Thicker tapes or higher liquor pick-up require higher temperatures or longer pre-drying times.
- Sensitive Colors (e.g., coffee, dark green): Temperature alone might not be enough; use anti-migration agents to achieve better results.
- Nylon Weaving Tapes: Use a short, low-temperature pre-dry of 80-100°C to avoid “dry outside, wet inside” issues.
4. Fixation/Heat Setting: Even Temperature is Key
- Temperature uniformity control: In the heat-setting oven (Thermosol), the temperature difference between left-center-right should be ≤±2°C. A difference above this will visibly change the color, leading to left-center-right color differences.
- Polyester (disperse dye, thermosol):Common window: 180-205°C, 60-120 seconds. Adjust based on dye type (S/SE/E) and shade depth.
- Nylon (acid dye, pad-steam):
Common window: 98-102°C saturated steam for 8-15 minutes, or 120°C wet heat for 5-8 minutes if the machine allows.
- PH control: For padding dye baths, maintain pH 4.0-5.5. pH fluctuations can lead to changes in tone and depth.
Maintenance Suggestions:
- Regularly service heating elements, burners, and fans. Clean air ducts and filters.
- Check the oven’s insulation to avoid hot and cold spots.
5. Moisture Control: “Fully Dry, Consistently Dry” Before Padding
- Dry and consistent moisture content is essential: After pre-treatment, ensure the fabric is fully dried before it enters the dyeing machine. Uneven drying leads to moisture differences, which cause left-center-right color variations.
- Maintenance: Periodically inspect drying units and hot air boxes. Install inline moisture sensors to catch issues before the fabric enters the dy bath.
6. Production Management: Stability in Tension, Airflow, and VFD Synchronization
- Consistent tension during entry: Uneven tension before entering the dye bath results in uneven liquor pick-up. Use a closed-loop tension system and ensure consistent threading paths.
- VFD Synchronization: Ensure that all VFD signals across processes are synchronized and respond consistently. Replace faulty components promptly.
- Clean air ducts and filters: Keep air paths clear to avoid uneven airflow that could lead to color variations.
- Data tracking and traceability: Record key parameters such as speed, tension, temperature, liquor pick-up, pH, recipe number, dye batch, and greige lot for easy troubleshooting.
7. Dye and Additive Compatibility: Choose “The Same Family” for Stability
- Disperse Dyes (Polyester): Choose dyes with similar sublimation fastness and type (S/SE/E). Mixing very different types can cause face-back color differences and increase dye migration risk.
- Acid Dyes (Nylon): Ensure pH buffering and use appropriate amounts of leveling or retarding salts. Avoid excessive amounts that could affect the feel and fastness.
- Anti-migration agents, penetrants, and leveling agents: These are essential for medium-to-dark colors or sensitive hues. However, use them in the right amounts.
Usage recommendation (Polyester):
- Start with an anti-migration agent concentration of no more than 15 g/L. Adjust based on color depth and line speed.
- Use sufficient reduction cleaning to remove floating colors and stabilize the color.
8. Quick Reference for Key Parameters (Recommended Starting Points)
- Padder pressure: ≥0.2 MPa, even on both sides.
- Liquor pick-up (Roller Residual Rate): Common target 60-80% (depends on tape type and shade depth).
- IR Pre-drying (Polyester): Start at 100°C, with a common range 100-150°C.
- Oven temperature difference: Left-center-right ≤±2°C.
- Nylon Steam Fixation: 98-102°C, 8-15 minutes (or 120°C wet heat for 5-8 minutes).
- Anti-migration agent: ≤15 g/L to start, adjust for darker colors.
- pH for nylon padding: 4.0-5.5.
- Sampling frequency: Measure liquor pick-up and ΔE for each roll/batch.
9. Equipment and Machine Selection (Continuous Dyeing Machine)
- For Polyester Weaving Tapes:
- Stable padding unit: Independent pressure control with dual cylinders, closed-loop liquor pick-up control, and roller hardness matched to the product.
- IR Pre-dry: Zoned power control, temperature loop for even drying.
- Thermosol Heat Setting Oven: Strong air circulation, uniform airflow, and temperature consistency left-center-right (≤±2°C).
- Cleaning section: Multi-stage counterflow washing with filtration to save water and reduce waste.
- Tension and edge guiding: Full-line VFD synchronization with low entry tension and automatic edge correction.
- Air compression quality: Cold air drying + oil-water separation to prevent pressure drift.
- For Nylon Weaving Tapes:
- Acid-resistant padding system: Use acid-proof pumps and rollers with inline pH dosing control.
- Pre-dry: 80–100°C to prevent surface dryness with internal moisture.
- Steam Fixation Box: Ensure stable saturated steam and fast condensate discharge with uniform airflow.
- Washing and neutralization: Multi-stage counterflow washing, final weak neutralization, softening if necessary.
- Low-tension process: Nylon fabrics stretch more, requiring soft traction and precise speed synchronization.
10. Common Problems and Troubleshooting Ideas
- Left-center-right color differences:
- Check oven temperature differences: Are they >±2°C?
- Check liquor pick-up: Are the roller pressure, concentricity, and hardness appropriate?
- Check moisture: Was the fabric fully dry before padding?
- Face-back color differences:
- Check if pre-drying was either insufficient or excessive. For sensitive colors, ensure the anti-migration agent was used.
- Adjust airflow direction and tape path to avoid one side being exposed to excessive heat or airflow.
- Batch-to-batch color differences:
- Ensure no yarn oil content discrepancies and prevent mixed batches of greige tape.
- Check for dye batch inconsistencies and recipe uniformity.
- Monitor machine speed and temperature profiles for repeatability.
- Color streaks and spots:
- Check for unstable tension and uneven airflow.
- Check for any surface dryness with a wet core or condensation in the steam box.
PAA (People Also Ask) Common Questions
- Why should the IR pre-dry be above 100°C?
- Above 100°C, moisture is mostly evaporated, reducing wet-state migration and greatly improving face-back consistency. For thicker tapes or higher liquor pick-up, increase temperature or extend time.
- What does 0.2 MPa padder pressure mean?
- This is the starting point for most tapes to achieve stable liquor pick-up. Lower pressures lead to insufficient dyeing, while higher pressures cause excessive dye pick-up and migration. Adjust based on tape type.
- How do you check oven temperature uniformity?
- Use multiple thermocouples or thermal cameras to track temperature across the width. A ΔT greater than ±2°C requires checking the airflow, heating elements, and insulation.
- Can one line handle both polyester and nylon?
- Yes, with separate steam and thermosol sections. To ensure quality and minimize changeover time, consider keeping dedicated lines or following strict cleaning SOPs for changeover.
11. Quality Control and Data Tracking: Ensuring Reproducible Good Color
Key KPIs include liquor pick-up, tension, speed, IR pre-dry temperature, heat-setting temperature and time, airflow/humidity, pH, and reduction/soap wash conditions.
Tools and Actions:
- Use online moisture and temperature sensors with alarms.
- Sample left-center-right every shift and track ΔE statistics.
- Inspect compressed air dew points and oil-water separators regularly.
- Periodically calibrate rollers and check hardness records.
- Manage formulations: Start from small batches → pilot runs → full-scale production.
