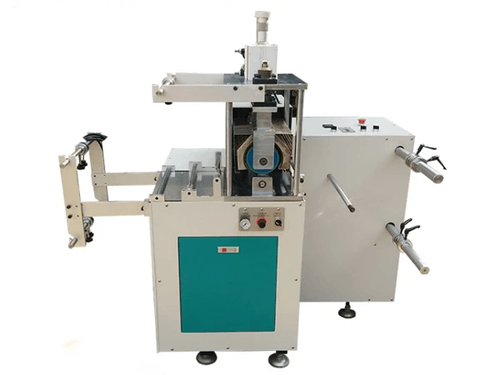

Upgrade Hot Foil Stamping Machine for Textile Ribbons

The upgraded hot foil stamping machine is built for textile ribbons — satin, grosgrain, organza, gift, polyester and nylon ribbons, plus some cotton tape and elastic tape. It combines faster setup, stronger foil adhesion and higher output for factories that run foil stamping alongside screen printing.

The upgraded structure is based on feedback from a large number of customers and a higher requirement for final foil quality. It connects directly to your existing screen printing machine — any brand — with power only, no complicated wiring or program changes.

What's New in the Upgrade?

1. Auto-sync with your existing screen printing machine
Connect the hot foil stamping machine to your existing screen printing machine — any brand — with power only. No complicated wiring, no program changes. The two machines run together in sync.

2. Heat transfer oil or electric drive
Choose the heating system that fits your factory: heat transfer oil or electric drive.

3. Even heating and a true 30 cm effective foil area
The upgraded heating roller provides more uniform heat and an effective foil area up to 30 cm. Many similar machines list a 30 cm rail but deliver only about 20 cm of effective working area; the 2026 upgrade gives you the full working area for higher output.

4. Faster heat-up: 10–15 minutes
The machine reaches the set temperature in about 10–15 minutes, compared with about 30 minutes for many conventional machines.

5. Double-sided contact stamping
Double-sided contact pressure improves foil fastness on the final product, especially for high-end packaging and premium ribbons.

6. Cooling fans for a cleaner foil finish
Additional cooling fans help stabilize the foil transfer and improve the final appearance.

7. Low maintenance and easy heating tube replacement
The machine has very few wear parts, which lowers maintenance cost over time. The heating tube is easy to replace when needed.

Key Specifications

• Effective foil area: 1–30 cm
• Heat-up time: 10–15 minutes
• Heating options: heat transfer oil or electric drive
• Compatibility: connects to any existing screen printing machine (any brand) with power only
• Stamping method: double-sided contact stamping
• Cooling: additional cooling fans
• Foil colors: standard gold and silver; many single-color and multicolor foils available; final color depends on the foil used
• Materials: satin ribbon, grosgrain ribbon, organza ribbon, gift ribbon, polyester ribbon, nylon ribbon, some cotton tape, elastic tape
• Certification: CE
• Warranty: 1 year
• Lead time: 20–35 working days

Materials and Applications

The upgrade hot foil stamping machine is designed for textile ribbons and narrow roll materials:

• Satin ribbon — logos, patterns and premium gift ribbon finishes.
• Grosgrain ribbon — crisp foil lines and brand details.
• Organza ribbon — decorative foil effects for gift and packaging ribbons.
• Gift ribbon — gold, silver and colored foil decoration.
• Polyester and nylon ribbon — durable foil stamping for labels, lanyards and trims.
• Cotton tape — selected cotton tape designs.
• Elastic tape — foil decoration on stretchable narrow materials.

Typical applications include textile ribbons, gift ribbons, garment labels, packaging ribbons and decorative trims. The machine is also a good fit for factories that already run screen printing and want to add foil stamping in one production line.

Foil Options

Gold and silver are the standard reference colors. We also support many single-color and multicolor foils. The final foil color on the ribbon depends on the foil you use, so you can match the finish to your brand or packaging design.

Send us your ribbon material, width, foil color and target effect; we will recommend the machine settings.

Frequently Asked Questions

1. What is new in the upgrade?
Faster heat-up (10–15 minutes), a true 30 cm effective foil area, double-sided contact stamping, cooling fans and easier maintenance. It also connects to any existing screen printing machine with power only.

2. Can it connect to my existing screen printing machine?
Yes. The machine is designed to sync with an existing screen printing machine of any brand. Connect the power and run them together; no complicated wiring or program changes.

3. What is the effective foil area?
1–30 cm. Many similar machines list a 30 cm rail but deliver only about 20 cm of effective working area; the 2026 upgrade delivers up to 30 cm.

4. What materials can it stamp?
Satin ribbon, grosgrain ribbon, organza ribbon, gift ribbon, polyester ribbon, nylon ribbon, some cotton tape and elastic tape.

5. What foil colors are available?
Gold and silver are standard. Many single-color and multicolor foils are available; the final color depends on the foil you choose.

6. What is the warranty and lead time?
1-year warranty. Lead time is generally 20–35 working days.

7. Can you test our ribbon and foil?
Yes. Send your ribbon, foil and target design; we will test the temperature, pressure and speed settings.

Tell us your ribbon material, width, foil color and screen printing machine brand/model. We will recommend the right 2026 upgrade configuration and send a factory quote.

Related Products

• LT3001 Metal Belt Screen Printer for Garment Labels
• Screen Printing Machines for Ribbons, Labels & Narrow Fabrics
• Elastic Tape Screen Printing Machine LX-3000G

Related Reading

• What Is Gilding Paper? Your Guide to Foil Stamping Basics
• Hot Foil Stamping Paper and Its Role in Textile Ribbon Hot Foil Stamping
• Is the Foil Peeling Off Your Ribbons? How the 2026 Hot Stamping Machine Helps

Foil stamping refers to the temperature and pressure of the anodized foil hot stamping on the substrate surface of the process.

Anodized hot stamping graphics and text present a strong metallic luster, bright colors, and eye-catching, never-fading. In particular, gold and silver anodized aluminum, with its magnificent, exquisite, and elegant decoration, embellished the surface of the printed matter. Enhanced the artistic quality of the printed matter, played a prominent role in Publicity Effect; Its brightness greatly surpassed the printing of gold and silver, so that the product has a high-grade feeling and gives people the enjoyment of the United States. Meanwhile, due to the excellent physical and chemical properties of anodized materials, it play a role in protecting printed materials, so bronzing technology is widely used in high-grade and exquisite packaging and decoration trademarks, calendars, book covers, and other printed materials.

Secondly, anodized hot stamping covers a wide range, from general book covers, trademark patterns, advertising, plastic products, to daily department stores, from paper to leather, cotton cloth, etc. The workpiece can be packed and transported immediately after bronzing. Therefore, foil stamping technology is widely used. The hot stamping application is still expanding.

A screen printing machine is a machine that prints words and patterns on flat or regular surfaces. The basic principle of its work is: First of all, installa  screen printing plate (using the photographic plate-making method to make the screen holes on the screen printing plate as through holes instead of blocking the screen holes on the picture and text parts). Printing through the Squeegee, so that the ink through the pattern part of the mesh transfers substrate, the same graphics and text as the original.
Silk Screen Printing is widely used in printing and dyeing, electronics, applied arts, commercial decoration, ceramic decoration, publishing, and printing industries.
It is widely used for graphic or flat surface printing patterns such as Cups, electronic products, cosmetics bottles, street, penholders, toys, mineral water bottles, shampoo bottles, etc.

Three elements of hot foil stamping technology
1. Time (T),  2. temperature (T),  3. pressure (P)
These three elements are interrelated and mutually binding. As we all know, the bronzing paper needs to absorb a certain amount of heat energy (Q) under certain pressure, which can make stamping paper ink and additives to a certain shape, and hot stamping to the surface of products
Where the Q and P in certain external conditions are inversely proportional. That is, in stamping a product, if the bronzing paper in a bronzing position can absorb a lot of heat, this bronzing requires very little pressure to iron the product well
And the relationship between T.T. and Q. is:
Q = r * t (T-t 0)(R is constant and t O is room temperature)
So t and t are inversely proportional to each other, under certain external conditions, under certain pressure, to produce a good product. If you use a very short pressure time, then the hot stamping temperature must be set very high; if you use a hot stamping temperature low, its bronzing pressurization time is set very long.

To foil-stamp a good product, it must have the following conditions:
1. Have a good hot foil stamping machine
A. General stamping machine consists of five parts: the working part, debugging part, mooring part, Airway part, and electrical control part
B. A good foil stamping machine has five parts, a reasonable design, a compact structure, good performance, and a long service life
2. Choose the right gilding paper
A. Bronzing paper has four layers: P paper base layer, ink layer, aluminum powder layer, and hot-sensing pressure melts layer
B. The drawing of each layer of bronzing paper:
P-BASE is the basis of ink adhesion, using p-high strength and high toughness, enough to ensure the stability and continuity of bronzing paper
Ink Layer is to achieve the bronzing color
The aluminum powder layer is aluminum powder vacuum plating on bronzing paper, increasing the brightness of bronzing products
