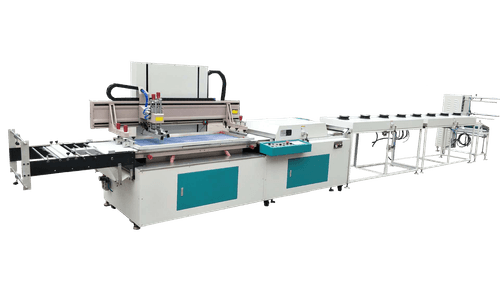

LX-600D 600mm Label Screen Printing Machine
Wide label rolls do not fit a narrow press. If you run 600 mm label rolls or need more label lanes per pass, a 300 mm machine forces extra passes and extra handling. LX-600D is a 600 mm single-color roll-to-roll screen printing machine for woven labels, satin labels, care labels, and textile tapes.
The 600 mm width is both the conveyor belt width and the maximum material width. It prints one color, with no overprint, and has a built-in drying oven. It prints on pre-woven label rolls; it does not weave labels.
Click here to watch its performance video
What It Prints

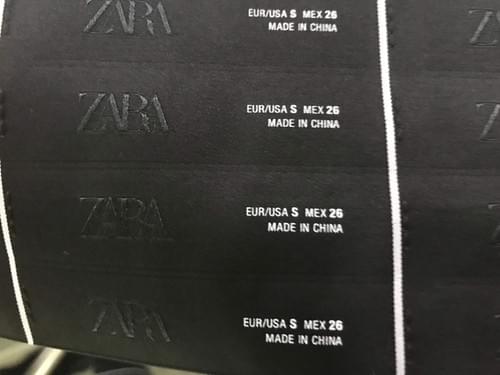

- Woven labels
- Satin labels

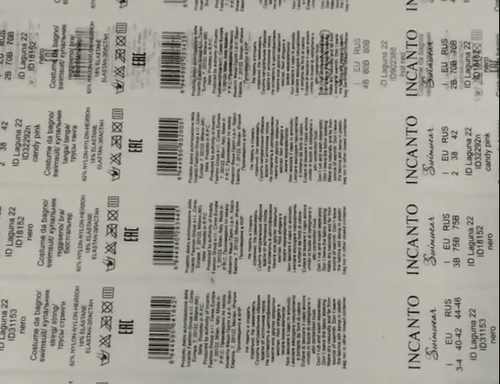

- Care labels
- Polyester tapes
- Nylon tapes
- Grosgrain tapes

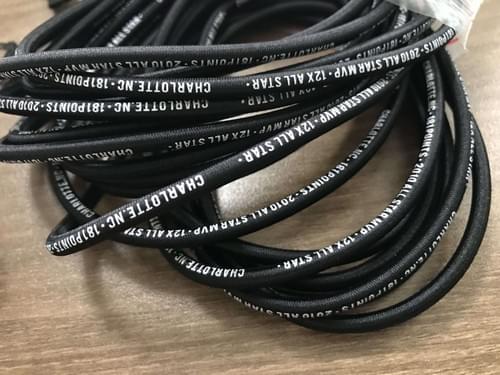

- Elastic tapes
It is a single-color label screen printing machine. It does not do multi-color or overprint. For elastic and grosgrain tapes, send a sample so the feeding and ink settings can be confirmed.
Why 600 mm Width
A 600 mm working width lets you run wider label rolls and more label lanes per pass than a 300 mm machine. That reduces the number of passes for high-volume label work.
The actual number of lanes depends on label width, gap, and roll layout. We confirm the lane layout from your roll.
Compared with the LX-100D woven label screen printer, LX-600D is the wider model:
- LX-100D: 300 × 700 mm table, 280 × 650 mm print area
- LX-600D: 600 × 800 mm print area, 600 mm material width
Single Color, No Overprint
LX-600D uses one ink and one pass. There is no overprint and no multi-color station.
This is the right machine for solid-color brand marks, white or light ink on dark labels, and single-color care-label printing. It is not the right machine if you need multi-color logos or 3D overprint effects.
Built-In Oven and Frame Lift
The drying oven is built into the machine. Drying settings are matched to the ink and material.
The screen frame lifts 100% for cleaning and design changes, and the printing direction is a single pass without overprint.
Specifications
- Model: LX-600D
- Working width: 600 mm (belt width and maximum material width)
- Print area: 600 × 800 mm
- Colors: single color only; no overprint
- Maximum speed: up to 760 m/h reference
- Power: 12 kW / 380 V / 50 Hz
- Dimensions: 7.6 × 1.2 × 1.5 m
- Weight: 1,200 kg
- Drying: built-in oven
- Frame lift: 100%
- Materials: woven, satin and care labels; polyester, nylon, grosgrain and elastic tapes
- Certification: CE
- Warranty: 1 year
- Installation: free on-site installation and operator training
- Documentation: English manuals and videos
- Support: online technical support
Speed is a reference value. Actual output depends on material, label length, design, ink, and drying.
Who It Is For
LX-600D is for label and tape producers who need a wider single-color press for high-volume woven label, satin label and care label work. It is also suitable for polyester, nylon, grosgrain and elastic tape printing where one color is enough.
It is not a multi-color machine, not an overprint machine, and not a weaving machine. It prints on pre-woven label rolls.
Warranty, Samples and Installation
The machine comes with a 1-year warranty and CE certification. Free printed samples are available with your material. Free on-site installation and operator training are included, with English manuals, videos and online support.
Frequently Asked Questions
Q: Is LX-600D a multi-color machine?
A: No. It is single-color only, with no overprint.
Q: What is the maximum material width?
A: 600 mm. The conveyor belt width is also 600 mm.
Q: What is the print area?
A: 600 × 800 mm.
Q: What materials can it print?
A: Woven labels, satin labels, care labels, polyester tapes, nylon tapes, grosgrain tapes and elastic tapes. Send a sample for elastic and grosgrain settings.
Q: Does it weave labels?
A: No. It prints on pre-woven label rolls.
Q: Does it have a built-in oven?
A: Yes. The drying oven is built into the machine.
Q: What is the maximum speed?
A: Up to 760 m/h reference. Actual output depends on material, label length, design, ink and drying.
Q: What is the power requirement?
A: 12 kW, 380 V, 50 Hz.
Q: What are the dimensions and weight?
A: 7.6 × 1.2 × 1.5 m, 1,200 kg.
Q: What is the difference between LX-600D and LX-100D?
A: LX-600D is the wider model: 600 × 800 mm print area and 600 mm material width. LX-100D is 300 × 700 mm with a 280 × 650 mm print area.
Q: Can it print elastic tape?
A: Yes, but elastic tape should be sampled first. The feeding and ink settings are confirmed based on your material.
Q: Can it print grosgrain tape?
A: Yes, with sample confirmation for the tape texture and ink.
Q: Are printed samples free?
A: Yes. We can print a free sample with your material.
Q: Is installation included?
A: Yes. Free on-site installation and operator training are included, with English manuals, videos, and online support.
Q: What is the warranty?
A: One-year warranty, CE certified.
Send Your Label Roll
Send your label roll width, material, and artwork. We will confirm the lane layout, single-color ink, and drying settings, and send a free printed sample for evaluation.
