The Short Answer

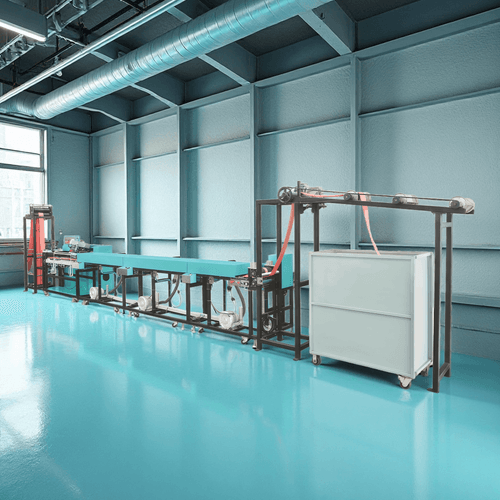

The LX-200ZB is an automatic single-color screen printing machine for heavy webbing slings and lashing straps. It uses a 30 cm standard working width (40 cm custom), a 50 cm or 1.2 m print length, and up to 720 m/h per single strip. It prints heavy webbing, webbing slings, lifting slings, lashing straps, and thick webbing.

Why LX-200ZB

The LX-200ZB is the model we recommend for most webbing sling and lashing strap factories. Its horizontal layout and standard drying oven make it the more competitively priced model. The LX-201ZB uses a vertical drying tower and a more compact body; it costs more and is chosen mainly when floor length is limited, when the rear vertical oven is preferred, or when the buyer wants that appearance. For most buyers, the LX-200ZB is the best value.

What Changes on Heavy Webbing

Heavy webbing is thicker, denser, and heavier than ribbon or label tape. The line has to keep the web flat under stable tension, push enough ink into the weave, and carry the printed web through the oven without tracking or stretching. A 30 cm machine can print several narrower slings side by side; a wide sling may take the full width and allow only one strip. Thick or wide webbing can reduce the practical speed, so the final setting is confirmed with a sample.

Specifications

Model: LX-200ZB
Color configuration: single-color
Standard working width: 30 cm
Custom working width: 40 cm
Printing table: 30 × 70 cm (table size, not the maximum print area)
Print length: 50 cm or 1.2 m, selectable
Maximum speed: up to 720 m/h per single strip
Maximum power: 20 kW / 380 V
Dimensions: 10.0 × 1.2 × 1.5 m (30 cm standard model)
Weight: 1000 kg (30 cm standard model)
Drying: integrated oven
Ink: oil-based or water-based screen printing ink
Certification: CE for the machine
Warranty: 1 year
Service: free on-site installation and operator training; online remote support

The 40 cm custom build and the 1.2 m print-length configuration may change dimensions, power or weight; confirm the final layout before ordering.

Materials & Applications

The LX-200ZB is built for heavy, wide webbing, including:

• Heavy-duty webbing
• Webbing slings
• Lifting slings
• Lashing straps
• Tie-down straps
• Thick webbing
• Seatbelt webbing

Typical users are webbing sling manufacturers, lifting sling producers and lashing strap factories. Seatbelt webbing can be printed, but certification of the finished seatbelt or sling is the customer's responsibility; the LX-200ZB is a printing machine, not a certified sling or seatbelt manufacturer.

Printing Challenges on Webbing Slings

• Tension and tracking — a heavy roll pulls harder than ribbon; the line must keep the web flat under stable tension, or the print moves across the width.
• Ink penetration — dense webbing can hold ink on the surface; the ink, squeegee pressure, and screen have to push color into the weave for a clear, durable print.
• Registration over long runs — thick webbing can wander or stretch; check the first and last meter, not just the sample.
• Multiple strips — narrower slings can run side by side, but the strips must be guided so they do not touch or overlap; a wide sling may take the full width.
• Drying — heavy webbing carries more ink; the integrated oven must handle the full width at the chosen line speed.
• Print clarity — most sling jobs are judged on readable specifications, load rating marks, and warning text. If the buyer requires pull testing, rub resistance, or color fastness, confirm the test method and ink before the order.

Recommended Configuration

• Start with the 30 cm standard width. Choose the 40 cm custom build only when the sling width or multi-strip layout requires it.
• Select the print length: 50 cm for shorter marks, 1.2 m for longer specifications or multi-line layouts.
• Keep the artwork single-color. The LX-200ZB does not print multi-color work.
• Use oil-based or water-based screen printing ink according to the webbing and the customer's requirements; confirm the ink and oven settings with a sample.
• Plan the strip layout: several narrow slings can run together; a wide sling may run one strip at a time.
• Free on-site installation and operator training are included; online remote support is available for settings and troubleshooting.

From Sample to Production

Send a piece of the actual webbing, its width, the required print length (50 cm or 1.2 m), artwork, and target output. We print a sample and confirm the strip layout, ink, squeegee, tension and oven settings. Before shipment, check the first and last meter for print clarity, registration, and drying. Record the confirmed settings with the job so repeat orders start from the same setup.

Quality Checks

• Print clarity — specifications, load rating marks, and warning text are readable.
• Registration — the print stays in position across the width and along the roll.
• Ink adhesion — the print does not rub off under the customer's normal handling requirements.
• Drying — the ink is fully cured before rewinding; no blocking or transfer.
• Strip tracking — multiple strips stay flat and separate; a wide strip does not wander.
• Color density — the same shade from the first meter to the last.

Frequently Asked Questions

Q: What is the LX-200ZB?
A: An automatic single-color screen printing machine for heavy webbing slings and lashing straps. The standard width is 30 cm; 40 cm is available as a custom build.

Q: Is it single-color or multi-color?
A: Single-color only. The LX-200ZB does not print multi-color work.

Q: What print length is available?
A: Two configurations: 50 cm or 1.2 m.

Q: What is the maximum speed?
A: Up to 720 m/h per single strip. The machine can print multiple narrower strips at the same time, depending on the total width. Thick or wide webbing can reduce the practical speed.

Q: What widths can it print?
A: The standard working width is 30 cm; 40 cm is available as a custom build. The printing table on the standard model is 30 × 70 cm.

Q: What ink and drying does it use?
A: Oil-based or water-based screen printing ink, with an integrated drying oven. The exact ink and oven settings are confirmed with your webbing sample.

Q: Does it print seatbelt webbing, and does the machine certify the finished product?
A: Seatbelt webbing can be printed. CE covers the machine; certification of the finished seatbelt or sling is the customer's responsibility.

Q: What is the difference between LX-200ZB and LX-201ZB?
A: The LX-200ZB is the horizontal long-line model at 10 m for the 30 cm build. The LX-201ZB uses a vertical drying tower and a shorter 7 m body. The LX-201ZB costs more because of that structure and configuration. Choose the LX-200ZB for the best value; choose the LX-201ZB only when floor length, the rear vertical oven or the appearance is the priority.

Q: What power and weight does it require?
A: The 30 cm standard model uses 20 kW at 380 V and weighs 1000 kg. The 40 cm custom build may differ; confirm the final site power and floor loading before installation.

Q: Do you provide installation and training?
A: Yes. Free on-site installation and operator training are included, plus online remote support for settings and troubleshooting.

Q: What is the warranty?
A: 1 year.

Get a Quote

Send your sling width, webbing, print length (50 cm or 1.2 m), artwork, and target output. We will confirm the 30 cm or 40 cm build and quote the LX-200ZB.

Free on-site installation and operator training are included; online remote support is available for settings and troubleshooting.

Related Models

• LX-201ZB Heavy Webbing Sling Screen Printing Machine
• Webbing Sling Pigment Continuous Dyeing Machine
• Screen Printing Machines

Related Reading

• How to Choose the Right Screen Printing Machine
• Process Flow of Screen Printing

Tips for Best Use:

• Look It Over: Check slings for damage before printing—save yourself the hassle.
• Keep It Straight: No knots or twists—smooth slings mean smooth webbing sling printing.
• Material Notes: Polyester holds up to inorganic acids but not organics; nylon weakens in moisture (15% strength loss).
• Store Properly: Keep slings away from UV light, heat, or flames—your heavy-duty screen printer deserves good stock.
• D/D Ratio: Use it to avoid burns or rips on heavy lifts.

Maintenance Basics:

• Move Carefully: Don’t drag slings—knots are trouble.
• Soft Ring Check: Avoid rough connections—keep things intact.
• Angle Limit: Soft rings under 20° for safe, clean lifts.
• Storage Tip: Cool, shaded spots—no heat sources nearby.

Who Needs It: ROS:

• Strap Printers: Quick, reliable lash strap printing for busy shops.
• Sling Makers: Steady webbing sling printing for bulk orders.
• Heavy Duty Crew: A heavy-duty screen printer that pulls its weight.

Get the LX-200ZB automatic screen printing machine working for you! Contact us today for a quote and start printing webbing slings and tie-downs that hold strong, fast, and fuss-free.

Matters needing attention for using webbing slings.
1. Do not use damaged sling webbing.
2. Do not knot or twist the sling when hoisting
3. Do not let the sling tie a knot when in use
4. Avoid tearing open the sewing joint or overworking
5. When moving the sling, do not drag the sling
6. Avoid the load of the sling caused by forcible seizure or shock.
7. Each sling must be carefully checked before use
8. Polyester is resistant to inorganic acids, but it is vulnerable to organic acids.
9. Polyester webbing is suitable for places that are most resistant to chemicals.
10. Nylon can resist strong organic acids and is vulnerable to facial acid. When exposed to moisture, the strength loss can reach 15%.
11. If the sling is contaminated with chemicals or used at high temperatures, you should seek a reference from the supplier

12. When using any sling, the application of the D/D ratio is important to prevent the burning and ripping of slings.

Maintenance methods of sling webbing
1. Do not drag when moving the sling and goods. Don't tie a knot.
2. The soft ring should not be connected to any device that may cause damage or wear to it.
3. When carrying the load, don't twist.
4. A webbing sling without a sheath should not be used to carry goods with sharp corners and edges.
5. The opening angle of the soft ring should be avoided from exceeding 20 °.
6. The sling should be stored under conditions that avoid light and ultraviolet radiation.
7. The hoisting belt should not be stored near an open fire or other heat sources.
8. When you don't use the sling webbing, the sling webbing should be put in a place with good light.
