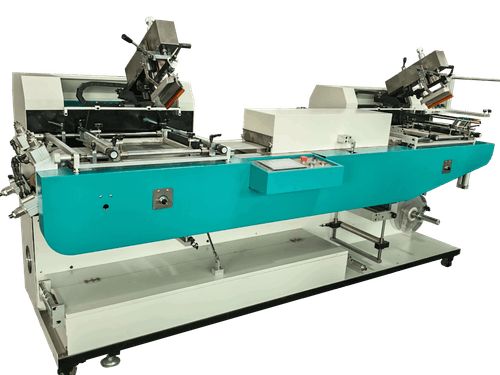

LX200CP 2-Color Screen Printing Machine for Labels & Ribbons
Sampling does not need a full production line—but it still needs registration that holds. A two-color label or ribbon sample with one color drifting is not a sample you can approve. LX200CP is a compact 200 mm-wide two-color screen printer built for that job: PVC conveyor belt, manual screen-frame micro-adjustment, 180 × 220 mm print area.
This 2-color screen printing machine for labels and ribbons is sized for sampling, small-to-medium orders, and factories with limited floor space. It runs one or two front colors and uses an additional device to print the back side. For a 2+1 machine with a rear station, the LT2001 is the next step up.
What This Machine Prints
LX200CP is a small screen printing machine for labels, ribbons, tapes, and cords. It handles:
- Garment labels
- Care labels
- Textile labels
- Cotton labels
- Damask labels
- Satin ribbons
- Grosgrain ribbons
- Cotton tapes
- Textile tapes
- Elastic tapes
- Elastic cords
- Shoelaces
It is also used as a compact label screen printing machine for sample rooms and short runs where a full production line is too much machinery.
Why a Compact 2-Color Machine
A large line makes sense when you run long orders and back-side work. A sample room, a small label producer, or a factory with limited floor space needs a different machine: short setup, 200 mm material width, two front colors, and a print area that fits labels and ribbons.
LX200CP is positioned for:
- Sampling and proofing before a bulk order
- Small and medium production runs
- Factories with limited floor space
- Two-color front-side labels and ribbons
- Single-color work when only one station is needed
- One color on the front and back 1-color work
Screen Frame Micro-Adjustment
The screen frame position can be adjusted manually according to the printing condition and print quality. This lets the operator fine-tune registration and achieve the best printing precision for the job.
It is a practical manual adjustment, not an automatic vision system. For sampling and small runs, it gives the operator direct control over the print position without a complex setup.
PVC Belt and Drying
The machine uses a 200 mm PVC conveyor belt. The belt itself has a maximum working temperature of 110°C. The oven below the belt can reach 160–200°C for drying.
The two temperatures are separate: the oven provides the drying heat, while the PVC belt is limited to its own working temperature.
Specifications
- Model: LX200CP
- Maximum feed width: 200 mm
- Belt width: 200 mm
- Effective print area: 180 × 220 mm (width × length)
- Colors: 1 or 2 front colors
- Back-side printing: yes
- Belt: PVC conveyor belt
- Screen frame: Manual micro-adjustment
- Maximum belt working temperature: 110°C
- Oven temperature: 160–200°C
- Maximum speed: 6 m/min
- Registration precision: 0.05 mm
- Power: 8 kW / 380 V / 3-phase / 50–60 Hz
- Dimensions: approx. 3800 × 770 × 1600 mm
- Weight: approx. 500–800 kg
- Warranty: 1 year
- Support: online technical support
Dimensions and weight are approximate and will be confirmed with the final configuration.
Who It Is For
LX200CP is for label, ribbon, tape, and cord producers who need a compact two-color screen printer for sampling and small-to-medium orders. It is also a good fit for a factory that wants a dedicated sample machine without taking up the floor space of a full production line.
It is not a 2+1 machine. For two front colors plus one back color, use the LT2001 2+1 metal belt screen printer. For 1+1 back-side work, add the optional double-sided printing frame.
Warranty, Installation and Support
The machine comes with a 1-year warranty and online technical support.
Installation is generally not included because the machine is simple to set up. If you need on-site installation or training, it is available at an extra cost.
Frequently Asked Questions
Q: Can LX200CP print one color and two colors?
A: Yes. It can run one or two front colors.
Q: Can it print the back side?
A: Yes. LX200CP can print 1+1 work with an additional device.
Q: Is this a 2+1 machine?
A: No. It is a two-color front-side machine. For 2+1 with a back-side station, see the LT2001.
Q: What is the maximum material width?
A: 200 mm. The PVC belt width is also 200 mm.
Q: What is the effective print area?
A: 180 × 220 mm, width × length.
Q: What materials can it print?
A: Garment labels, care labels, textile labels, cotton labels, damask labels, satin ribbons, grosgrain ribbons, cotton tapes, textile tapes, elastic tapes, elastic cords and shoelaces. Send a sample if your material is not listed.
Q: What is the maximum belt temperature?
A: The PVC belt has a maximum working temperature of 110°C. The oven below the belt can reach 160–200°C.
Q: What is the maximum speed?
A: 6 m/min. Actual working speed depends on material, ink, and print quality.
Q: What is the registration precision?
A: 0.05 mm.
Q: What is the power requirement?
A: 8 kW, 380 V, 3-phase, 50–60 Hz.
Q: What are the dimensions and weight?
A: Approximately 3800 × 770 × 1600 mm and 500–800 kg. The final configuration is confirmed before shipment.
Q: Is it suitable for sampling and small orders?
A: Yes. It is positioned for sampling, small-to-medium orders, and limited floor space.
Q: Does it have screen frame micro-adjustment?
A: Yes. The screen frame position can be adjusted manually according to printing conditions and print quality to achieve the best registration and precision.
Q: Is installation included?
A: Generally no, because the machine is simple to set up. On-site installation and training are available at an extra cost.
Q: What is the warranty?
A: One-year warranty with online technical support.
Send Your Sample
Send your label or ribbon sample, artwork, and target output. We will confirm the screen setup, print area, and whether LX200CP fits your material and order size.
