The Short Answer

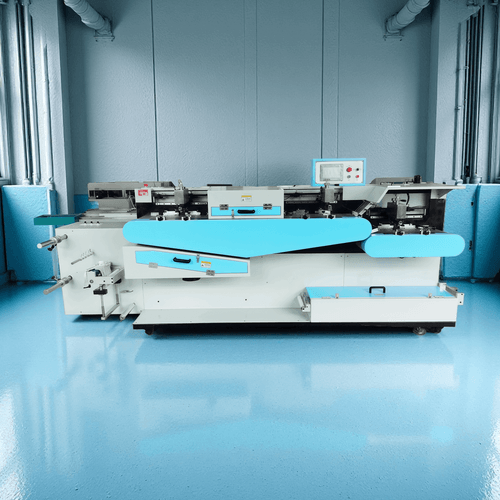

The LT2001 is the 2+1 model in CNY Printer's metal belt screen printing series: two front colors, one back color, a 130 × 280 mm print area and a maximum speed of 6 m/min. It is built for ribbon-first and two-color label work. If the artwork needs three front colors, the LT3001 is the correct model.
What 2+1 Means on a Real Job
2+1 means the LT2001 has two front print stations and one back station. A job does not have to use all three stations. The same machine can run:
• 2+1 — two front colors + one back color
• 2+0 — two front colors, no back color
• 1+1 — one front color + one back color
• 1+0 — one front color, no back color
These are job combinations on the same LT2001, not different machine models. The maximum face artwork is two front colors. If the face needs a third front color, the job does not fit the LT2001 and moves to the LT3001 3+1.
Where the LT2001 Fits — and Where It Does Not
Best fit: ribbon-first jobs in satin, taffeta, damask, twill and shoelaces; one- or two-color front artwork on cotton labels and elastic tapes; sampling, short runs and repeat medium runs; buyers who want a metal belt line without a third front station.
Less suitable: artwork that needs three front colors; artwork outside the 130 × 280 mm area; jobs that need the 150 mm or 200 mm working widths of the LT3001.
2+1 vs 3+1: The Decision Table
- Front colors (maximum): LT2001 = 2; LT3001 = 3.
- Back color: LT2001 = 1; LT3001 = 1.
- Best fit: LT2001 = ribbon-first work and one- or two-color front artwork;
- Print area: LT2001 = 130 × 280 mm; LT3001 = about 230 × 130 mm (150 mm width) or about 230 × 180 mm (200 mm width).
- Best fit: LT2001 = ribbon-first work and two-color front artwork; LT3001 = garment and care labels that need three front colors.
- Speed: LT2001 = 6 m/min; LT3001 = confirmed with the final configuration.
Ribbon-First Printing: What Changes in the Setup
Ribbon changes the setup more than the machine size does. On satin and taffeta, the unwind tension must be light and stable; too much tension stretches the ribbon and moves registration. The 200°C metal belt is headroom, not a default setting — use the lowest belt temperature that cures the ink without dulling the surface. Edge definition is the visible quality marker on ribbon, so screen tension and squeegee condition matter more than running at maximum speed. Elastic tapes need lower tension and a slower speed; shoelaces need stable guiding so the narrow material does not wander. Keep a settings record for each material so a repeat order starts from the same belt temperature, speed, and ink.
From Sample to Repeat Order
Send the material, roll width, artwork, front and back color count, and target output. We test your material and artwork, then confirm the 2+1 setup: belt temperature, speed, ink, screen, and squeegee. Before shipment, check registration, edge definition, color consistency, ink adhesion, and heat effect. The confirmed settings can be recorded with the job so a repeat order starts from the same belt temperature, speed, and ink.
LT2001 Specifications
Model: LT2001
Color configuration: 2+1 (two front colors + one back color)
Effective print area: 130 × 280 mm
Maximum speed: 6 m/min
Registration precision: 0.05 mm
Metal belt temperature: up to 200°C
Power: 8 kW / 380 V / 3-phase / 50–60 Hz
Dimensions: approx. 3800 × 770 × 1600 mm
Weight: approx. 500–800 kg

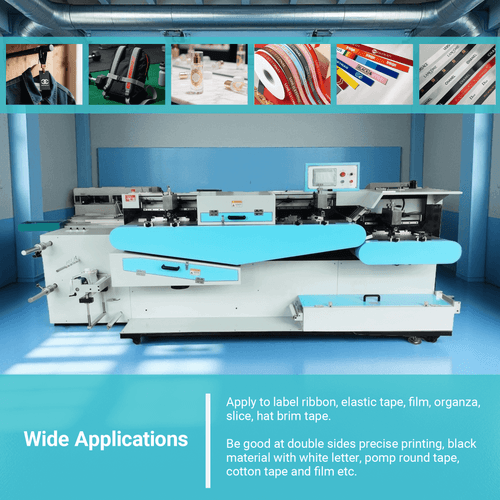

Materials: satin ribbons, cotton labels, elastic tapes, taffeta, damask, twill, shoelaces
Service: free on-site installation and operator training; online remote support
Warranty: 1 year
Job combinations: 1+1, 1+0, 2+0, 2+1 (jobs on the same machine, not separate models)
Buyer Questions Specific to the 2+1 Model
Q: Is the LT2001 2+1 or 3+1?
A: The LT2001 is a 2+1 machine: two front stations and one back station. It can run jobs that use fewer stations (1+1, 1+0, or 2+0) or the full 2+1, but it is not a 3+1 machine. For three front colors, the LT3001 is the correct model.
Q: Can I add a third front color later?
A: The LT2001 is supplied as a 2+1 model. If the artwork needs three front colors, choose the LT3001 from the start.
Q: What is the print area and maximum speed?
A: The effective print area is 130 × 280 mm, and the maximum speed is 6 m/min. The working speed is set for the material and ink.
Q: Which materials does it handle best?
A: Ribbon-first materials: satin, taffeta, damask, twill, and shoelaces. It also handles cotton labels and elastic tapes with the right tension and temperature settings.
Q: What kind of artwork suits the LT2001?
A: Any job within its 2+1 capability: 1+1 (one front + one back), 1+0 (one front, no back), 2+0 (two front, no back) or 2+1 (two front + one back). If the face needs three colors, the LT3001 3+1 is the correct model.
Q: What power and weight does it require?
A: 8 kW, 380 V, 3-phase, 50–60 Hz; weight is approx. 500–800 kg. Confirm the site power and floor loading before installation.
Q: Do you provide installation and training?
A: Yes. Free on-site installation and operator training are included for this screen printing machine, plus online remote support for settings and troubleshooting.
Q: What is the warranty?
A: 1 year.
Request a 2+1 Configuration Review
Send your material, roll width, artwork, front and back color count, and target output. We will confirm whether the 130 × 280 mm area and the 2+1 setup fit the job, then quote the LT2001 with the matching ink and belt settings.
If the artwork needs three front colors, we will recommend the LT3001 3+1 instead.
