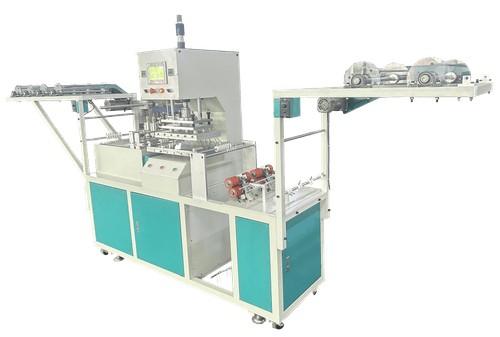

Multi-Strip Textile Tape Embossing & Debossing Machine
Four tape lines. One mold. One heat cycle. If the embossed depth changes from line to line, or the tape shifts during pressing, the finished batch looks inconsistent—even when the machine is running at full output.
This is a high-frequency embossing and debossing machine for textile tape. It runs four tape lines at once, and with the right mold it produces a raised (embossed) or recessed (debossed) logo, text, or pattern. It is a textile tape embossing and debossing machine in one frame. It does not use ink or foil, and it is not a screen printer.
What This Machine Does
This is a multi-strip embossing machine built for narrow textile tapes. It runs four tape lines in one cycle. The mold defines the pattern and the press area: embossing raises the surface, while debossing presses the pattern into the tape.
The same machine can produce both effects by changing the mold. That makes it suitable for ribbon, elastic tape, textile tape and leather tape producers who need a raised or recessed brand mark, text or geometric pattern in production.
Emboss or Deboss: The Mold Sets the Effect
Embossing raises the pattern above the tape surface. Debossing presses it into the tape. The difference is the mold, not ink or foil.
Tell us which effect you want and send your artwork. The mold is custom-made for your logo, text or pattern. The mold also determines the actual pattern area inside the maximum press area.
Four Tape Lines in One Cycle
The machine runs four tape lines at the same time. The maximum press area is 300 × 100 mm, and the heating plate is 350 × 250 mm. The actual layout for the four lines depends on your tape width and pattern, so the mold is confirmed from your sample and artwork.
Rated output is 10,000–12,000 m per day. Actual output depends on the pattern, material, line layout and operator.
Materials
The machine is used for:
- Ribbons
- Elastic tapes
- Textile tapes
- Leather tapes
Thick or heat-sensitive materials should be tested before the mold is finalized. Send a short sample so we can confirm whether high-frequency embossing or debossing suits the material.
How the High-Frequency Process Works
The machine uses a 27.12 MHz high-frequency field with 8 kW HF output and 12 kVA input power. Pressure is 6 kg/cm², applied by air or oil pressure. The heating plate is 350 × 250 mm; the maximum press area is 300 × 100 mm.
High-frequency heating and controlled pressure form the pattern in the mold. The final depth and sharpness depend on the mold, the tape material and the setup. We recommend a sample run before production.
Specifications
- Output: 10,000–12,000 m/day
- High-frequency output: 8 kW
- Input power: 12 kVA
- Input voltage: 380 V
- Operating frequency: 27.12 MHz
- Pressure: 6 kg/cm²
- Pressurization: air or oil pressure
- Heating plate size: 350 × 250 mm
- Maximum press size: 300 × 100 mm
- Maximum quantity: 4 tape lines per cycle
- Machine weight: 500 kg
- Machine dimensions: 4.2 × 1 × 2 m
- Mold: custom-made for the customer’s pattern and tape width
Molds and Changeover
Molds are custom-made for each customer’s logo, text or pattern. The 300 × 100 mm press area is the maximum; how the four tape lines fit inside it is confirmed based on your tape width and pattern.
Mold changeover is a manual setup. The time depends on the pattern complexity and how often you change designs. Share your artwork, tape width, and material so we can quote the correct mold layout.
Warranty, Installation and Support
The machine comes with a 1-year warranty and online technical support. On-site installation and training are available at an extra cost.
Frequently Asked Questions
Q: Can this machine do both embossing and debossing?
A: Yes. Embossing and debossing use different molds. Embossing raises the pattern; debossing presses it into the tape.
Q: How many tapes can it run at once?
A: Four tape lines per cycle.
Q: What is the maximum press area?
A: The maximum press area is 300 × 100 mm. The heating plate is 350 × 250 mm. The actual pattern area is determined by the mold.
Q: Can it be used as a ribbon embossing machine?
A: Yes. It handles ribbons, elastic tapes, textile tapes, and leather tapes.
Q: Can it deboss elastic tape?
A: Yes, with the appropriate mold. Elastic tape should be tested first because stretch and heat response vary by material.
Q: Does it use hot foil or ink?
A: No. This machine is for embossing and debossing only. It does not apply hot foil or ink.
Q: What is the output?
A: Rated output is 10,000–12,000 m per day. Actual output depends on the pattern, material, line layout, and operator.
Q: Can you make the mold?
A: Yes. Molds are custom-made for your logo, text, or pattern. Send artwork, tape width, and material so we can confirm the four-line layout and press area.
Q: How long does mold change take?
A: It is a manual change. Time depends on pattern complexity and how often you change designs; there is no single fixed time for every mold.
Q: What tape width can it run?
A: The mold layout is custom. Send your tape width and pattern; the four lines must fit inside the 300 × 100 mm maximum press area.
Q: What is the warranty and installation support?
A: One-year warranty and online technical support. On-site installation and training are available at an extra cost.
Q: Can you test my tape?
A: Yes. Send a short tape sample and your artwork so we can confirm the mold layout and the embossing or debossing effect.
Send Your Sample
Send your tape sample, artwork, and target output. We will confirm the mold layout, press area, and whether high-frequency embossing or debossing suits your material.
