Automatic Woven Label Laminating Machine
Is Wrinkling or Belt Drift Slowing Down Your Label Backing Line?
If you laminate backing onto woven labels or narrow fabrics, you know the result depends on tension, heat, and belt tracking. A small change in tension can create wrinkles. A belt that drifts can ruin the edge. Uneven temperature or pressure can make the backing look different from roll to roll.
Does This Sound Like Your Line?
- The finished label has wrinkles or creases.
- The belt drifts, and the operator has to stop and adjust tracking.
- The temperature is not even across the full width.
- The rubber roller pressure is not consistent.
- The operator has to keep adjusting the machine.
- The flatness or backing quality changes from roll to roll.
If this sounds familiar, the LXF-600 automatic laminating machine is made for your line.
What If the Line Could Hold the Web Flat and Keep the Belt on Track?

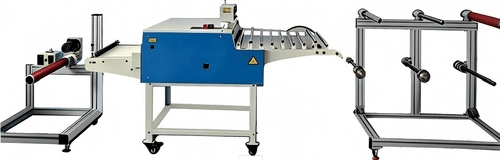

The LXF-600 is an automatic hot laminating machine for label backing. It uses front and rear tension control to keep the material flat, a heated bonding section for hot pressing, and automatic belt tracking correction. The customer chooses the backing material; the machine is set for that backing and the label or narrow fabric.
What the LXF-600 Does
- Hot-press lamination of a customer-selected backing material
- Works with woven labels and narrow fabrics
- Two-side folding
- Front and rear tension control for flat, wrinkle-free material
- Uniform temperature distribution, ±5°C across the working area
- Stable rubber roller pressure across the full belt width
- Automatic belt tracking correction — no manual belt alignment
- Adjustable temperature and pressure
- Automatic shutdown to reduce operator fatigue
- Belt sizes: 1560 × 600 mm and 2080 × 600 mm per set
What It Runs
- Woven labels
- Narrow fabrics
- Products that need an adhesive backing
The backing material is selected by the customer. Send the actual label or narrow fabric and the backing sample for a lamination test before ordering.
Key Specifications
Model: LXF-600
Voltage: 220 V
Power: 6.2 kW
Bonding temperature: 0–150°C
Conveyor belt speed: 0–6 m/s
Bonding width: 600 mm
Machine pressure: 4.5 MPa
Temperature uniformity: ±5°C
Machine dimensions: 4.2 × 1.3 × 0.95 m
Machine weight: 393 kg
Belt sizes: 1560 × 600 mm, 2080 × 600 mm per set
Functions: front/rear tension control, hot pressing, two-side folding, automatic belt tracking, automatic shutdown, adjustable temperature and pressure
Warranty: 1 year
Support: online support
Installation: no installation or training provided
How It Works
1. Load the label or narrow fabric and the customer-selected backing material.
2. Set the bonding temperature and pressure.
3. The front and rear tension systems keep the material flat.
4. The heated bonding section presses the backing onto the material.
5. Automatic belt tracking keeps the belt in position.
6. The machine stops automatically when the run is complete.
Who Is This Machine For?
• Woven label factories that add a backing to their labels
• Narrow fabric producers with adhesive backing requirements
• Label finishing workshops
• Factories that want a flatter, more consistent backing result
• Producers who want to reduce manual belt tracking and operator fatigue
This is a laminating and backing machine, not a label cut-and-fold machine. It can fold both sides, but it does not cut labels into shapes.
Photos and Video
Machine photos and a running video are available. Contact us with your label or narrow fabric, backing material and target output, and we will send the relevant photos and video.
Frequently Asked Questions
Q: What does the LXF-600 do?
A: It hot-presses a customer-selected backing material onto woven labels or narrow fabrics. It is an automatic label laminating/backing machine.
Q: Who chooses the backing material?
A: The customer chooses the backing material. Send the backing sample with the label or narrow fabric so we can confirm the setting.
Q: What materials can it run?
A: Woven labels, narrow fabrics, and products that need an adhesive backing.
Q: Can it fold both sides?
A: Yes. The machine can fold both sides. It is not a cut-and-fold machine and does not cut labels into shapes.
Q: What is the bonding width?
A: 600 mm.
Q: What are the temperature and pressure?
A: Bonding temperature 0–150°C; machine pressure 4.5 MPa. Both are adjustable.
Q: How uniform is the temperature?
A: The temperature difference across the working area is within ±5°C.
Q: How does it prevent wrinkles and belt drift?
A: Front and rear tension control keeps the material flat. Automatic belt tracking correction keeps the belt in position without manual alignment.
Q: What is the conveyor belt speed?
A: 0–6 m/s.
Q: Do you provide installation and training?
A: No installation or training is provided. Online support is available.
Q: What is the warranty?
A: 1 year.
Q: Can you test our material and backing?
A: Yes. Send the label or narrow fabric, the backing sample, and the target output. We will test the lamination and confirm the machine settings.
Send your label or narrow fabric, the backing material sample, and your target output. We will confirm the LXF-600 configuration, test the lamination and quote the machine.
